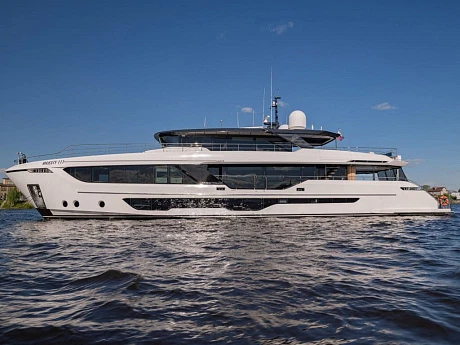

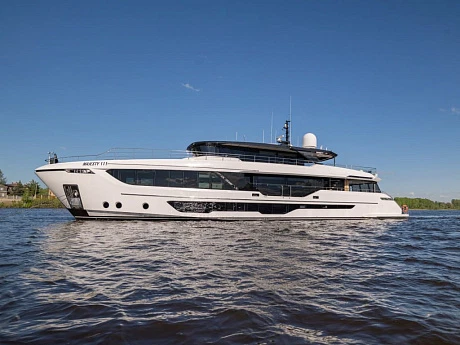

Majesty 111

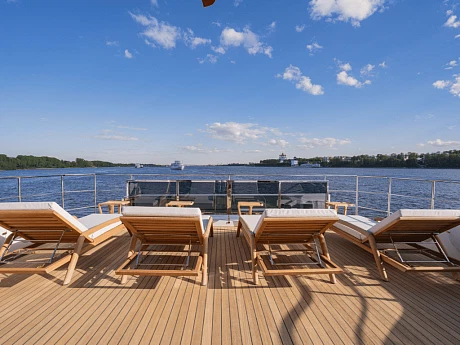

Stern section (upper deck)

• 316L stainless steel railings
• Stern crane on upper deck with a lifting capacity of 1100 kg
• Pantograph door to the wheelhouse on the port side
• Electric patio door to the sky lounge
• Worktop with sink, barbecue grill and refrigerator under the worktop on STBD
• Stairs down to the main deck cockpit
• Teak decking
• Self-cleaning deck (drainage scuppers)
• Folding step for access to the hardtop

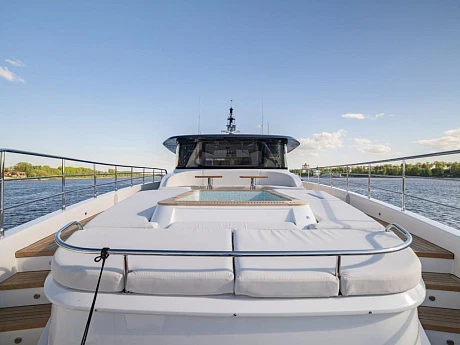

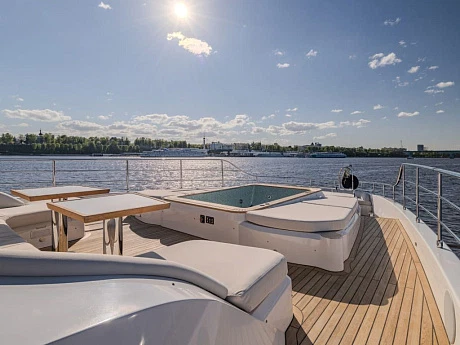

Bow area

• 316L stainless steel railings
• Sun loungers in the bow and stern areas with reclining headrests
• Four 316L stainless steel deck cleats

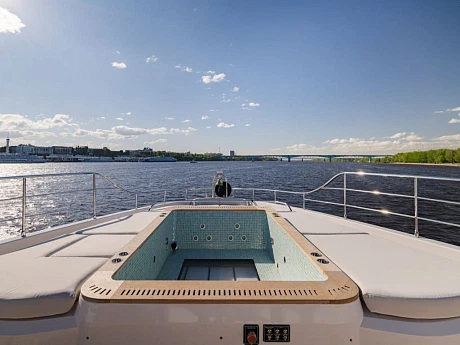

• Swimming pool
• Soft sofa with storage for fenders
• Ladder to the main deck STBD
• Hatch for access to the anchor chain compartment
• Teak decking
• Self-draining deck (drain plugs)

Main deck

• 316L stainless steel railings
• Watertight doors to main saloon, galley, and crew mess
• Storage locker for cleaning tools on port and starboard sides
• Stairway to upper deck on starboard side
• Two 316L stainless steel deck cleats on port and starboard sides
• Electric patio door
• Stairs to the upper deck in the aft cockpit on the port side
• Door in the bulwark on the port and starboard sides
• Movable furniture (two three-seater sofas, coffee table, and carpet)
• Fold-down faucet with sink in the port side stanchion niche
• 316L stainless steel transom doors
• Teak decking
• Self-cleaning deck (drain plugs)

Swimming platform

• Electro-hydraulic garage door
• Stainless steel safety bracket mounting points on swim platform
• Teak decking
• Two 316L stainless steel cleats

UPPER DECK

Control station

• Main helm station
• Pilot seat
• Sofa on the starboard side with folding table
• Chart table with drawer on the port side
• Door to upper deck lobby

Lobby

• Staircase to main deck lobby
• Sliding door to Sky Lounge
• Door to captain's cabin
• Door to the galley on the upper deck

Sky Lounge

• Movable furniture (L-shaped sofa and coffee table)
• Bar counter with sink, refrigerator, wine cabinet, and storage cabinets
• Electric Roman blind
• Electric curtain
Captain's cabin
• Single bed
• Wardrobe
• Folding desk with stool
• Pleated blinds
• Carpeted floor

Bathroom on the upper deck

• Washbasin with mixer tap
• Overhead shower
• Mirror
• Electric toilet
• Bathroom accessories
• Roller blinds
• Artificial marble floor with teak grating

MAIN DECK

Main saloon

• Movable furniture (L-shaped sofa, side table, coffee table, two armchairs)
• Low storage rack
• Electric Roman blinds with roller blinds
• Electric Roman blind
• Electric curtain
• Carpet
• Wooden floor

Dining area

• Dining table with 12 chairs
• Storage chests
• Two side storage chests
• Electric Roman blind
• Wooden floor

Dry storage

• Storage cabinets
• Ice maker

Main galley

• Countertop with sink and faucet
• Wall cabinets
• Storage cabinets under the table
• Two full-height refrigerators and one full-height freezer
• Dishwasher
• Induction hob with four burners
• Oven
• Microwave oven
• Extractor hood
• Pleated blind
• Tiled floor

Laundry room

• Foldable ironing board
• Sink with countertop and mixer tap
• Two washing machines
• One dryer
• Storage cabinet
• Door to the main hall
• Wooden floor

Main lobby

• Staircase leading to the lower deck
• Door to the day galley
• Door to the master cabin
• Wooden floor

Bathroom

• Washbasin with mixer tap
• Mirror
• Electric toilet
• Toiletries
• Pleated curtain
• Marble floor

Owner's cabin

• Chest/wardrobe with pouf
• Desk with chair
• Double bed with bedside tables
• Shelves on the left and right sides
• Storage chests
• Sofa on the left side
• Sliding door to the dressing room
• Electric curtains
• Carpeted floor

Owner's dressing room

• Cabinets, open shelves, and pull-out drawers
• Door to master bathroom
• Carpeted flooring
Owner's bathroom
• Double sink with mixer tap
• Mirror with storage cabinet
• Electric toilet
• Glass door to the shower room
• Seat in the shower
• Shower head and hand shower
• Sanitary accessories
• Mosaic marble floor
• Pleated curtain

LOWER DECK

Guest lobby

• Storage cabinets on the port and starboard sides
• Doors to guest cabins (4) and VIP cabin
• Carpeted flooring

Double guest cabins

• Double bed with storage system and bedside tables
• Wardrobe
• Electric Roman blinds
• Carpeted floor

Double guest bathrooms

• Washbasin with mixer tap
• Mirror with cabinet
• Electric toilet
• Toiletries
• Glass door to shower room
• Mosaic marble flooring

Double guest showers

• Shower seat
• Shower head and hand shower
• Marble flooring
• Electric roller blinds
• Toiletries

Double guest cabins

• Two single beds with drawers and bedside table
• Wardrobe
• Electric roller blinds

Guest bathrooms

• Washbasin with mixer tap
• Vanity mirror
• Electric toilet
• Sanitary accessories
• Glass door to shower room
• Mosaic marble floor

Double guest showers

• Shower seat
• Shower head and hand shower
• Marble floor
• Electric roller blinds
• Bathroom accessories

VIP cabin

• Double bed with drawers and bedside tables
• Dressing table with chair
• Wardrobes
• Door to the VIP cabin bathroom
• Electric Roman blinds

VIP cabin bathroom

• Washbasin with mixer tap
• Vanity mirror
• Electric toilet
• Toiletries
• Glass door to shower room
• Marble floor
• Electric roller blinds

Shower in the VIP cabin

• Overhead and hand-held shower
• Artificial marble floor
• Toiletries

For the crew

• Soft sofas with pull-out table
• Fireproof and waterproof door to the engine room
• Countertop with sink and mixer tap
• Microwave oven
• Storage cabinet
• One washing machine and dryer
• One full-height refrigerator
• Door to crew cabins
• Pleated curtain on the port side
• Tiled floor

Crew cabins

• Bunk beds
• Wardrobe
• Folding table with stool
• Door to crew bathroom
• Pleated blinds
• Tiled floor

Crew bathrooms

• Washbasin with mixer tap
• Mirror with cabinet
• Electric toilet
• Glass door to shower room
• Hand showers
• Teak slatted floor

SUPPLIES

• Retractable boat hooks
• Eight F6 wings, 11“ x 42”
• Eight wing straps, 4.5 meters, 10 mm, 3 strands, white
• Basic tool kit
• Portable hose reel
• Two deck wash connectors
• External protective covers for sofas, windows, and windshield
• User manual
• Manuals for engines, machinery, and equipment

MAIN MACHINERY AND EQUIPMENT

Propulsion system

• Twin MAN V12-1900, 1397 kW@2300 rpm combined with SCR
• Twin reversible reduction gearbox
• Twin five-bladed propellers

Exhaust and ventilation system

• Exhaust and ventilation reversible fans in the engine room
• Ventilation fan in the garage
• Mist collector for the engine room
• Fire dampers in the engine room
• Central fresh air supply system
• Centralized exhaust system

Steering system and maneuvering

• Electro-hydraulic steering system with power steering
• Electric fin stabilizers
• Hydraulic thruster with 750 kg thrust
• System ready for installation of stern thruster (stern thruster not included)

Control stations

• Main steering wheel
• Dock station
• Emergency steering station
Dock post
• Throttle control
• Bow thruster joystick
• Engine control panel
• Siren switch
Emergency steering control
• Steering wheel
• Steering angle indicator

Anchoring and mooring equipment

• Two electric vertical capstans with manual control on deck
• Two 180 kg VHHP anchors with a length of at least 130 m and a chain diameter of 12.5 mm. Anchors and chains are made of galvanized steel.
• Pressure washing of the chain using a fire pump
• Two 24 V DC, 2500 W capstans with foot switches
• Three mooring lines, each 74 m long with an eye at one end

Siren

• Electric air horn with one pipe
• Switches at the main steering station and dock station

Searchlight

• Forward searchlight
• Control panel at the main steering station

Landing equipment

• Electrohydraulic pliers
• Hook for ladder on both sides

Fuel system

• 17,798 liters of fiberglass fuel tanks with connection
• Main AC fuel transfer pump
• Emergency DC fuel transfer pump
• Deck fuel filler in recessed locker on port side
• Stainless steel fuel transfer manifold

Lubricating oil system

• Manual lubricating oil pump
• Flexible hose

Air conditioning system

• Air conditioning chillers with a total cooling capacity of approximately 409,457 BTU
• Two seawater pumps
• Two chilled water pumps
• Fan coil units with a capacity of 5,100 to 44,300 BTU/hour
• Central fresh air supply system
• Central toilet exhaust system

Fresh water system

• 5,155-liter fiberglass freshwater tank
• Assembly of 2 AC pumps and a DC emergency pump
• Two 150-liter water heaters
• One hot water circulation pump
• One water heater with a capacity of 320 liters per hour
• Deck wash connections on the bathing platform, in the anchor handling compartment, and on the sun deck
• Transom shower with hot and cold water mixer
• Dock connection for fresh water supply with pressure regulator
• Windshield wiper system

Gray water supply system

• 2708 liters fiberglass bow tank for gray water and FC drain tank
• Deck for discharging water overboard in port/marina
• Black and gray pump connection
• Polished 316L stainless steel scuppers on all decks

Black water system

• Total 2169 liters FRP, FWD and AFT black water tank
• Deck for discharging water overboard in port/marina
• Electric toilets with macerator pumps

Bilge system

• Suction mesh filters
• Main bilge pump connected to the bilge line
• IP68 remote control valves on the main line with two simulation panels for control
• Engine room and main deck
• High water alarm panel in the bilge in AMS. Audible and visual alarms at all AMS stations
• Bilge system piping made of stainless steel
• Water suction in the chain locker will be provided by an injector powered by the fire network

ELECTRICAL SYSTEM

A/C power supply system

• Line voltage: 230V-400V AC 3-phase, 50Hz.
• Dual 230/400 V AC generators, 55 kW, 3-phase with load sharing.
• Main distribution board and auxiliary DB panels
• Shore power system with cable master
• Galvanic isolator
• All living and machine rooms have 230 V AC sockets

DC power system

• 24 V DC system powered by the following banks

Engine and generator

• Four 12V, 240AH batteries for engines
• Four 12V, 110AH batteries for generators
• Four 16A smart chargers for engines and generators

Service

• One 100A charger for the service battery
• Two 12V, 240AH batteries for maintenance

Machines

• Two 12V, 240AH batteries for machines
• One 100A charger for machine batteries

Emergency

• Two 12V, 240AH batteries for emergency batteries
• One 100A charger for emergency battery
GMDSS
• Two 12V, 165AH batteries for GMDSS
• 30A charger for charging GMDSS batteries

Emergency lighting

• 24V DC emergency lighting

Floodlights

• Two floodlights on the hardtop at the stern
• Two floodlights on the upper deck at the stern
• Two floodlights on the foremast

Underwater lights

• Twelve white LED underwater lights

Tank water level monitoring system

• The water level monitoring system in the tanks will be integrated into the AMS
Grounding and lightning protection
• Zinc anodes
• Copper plates
• Lightning rod

Communication system

• Feedback system

NAVIGATION SYSTEM, RADIO, AND INSTRUMENTS

Navigation and radio system

• Two 22-inch navigation displays and one 22-inch video surveillance display
• Magnetic compass
• Two radar scanners
• GPS system
• Automatic identification system
• Autopilot
• VHF radio with DSC
• MF radio with DSC
• NAVTEX installation option
• Rudder angle indicator
• BNWAS position
• Night vision camera
• Brass bell

Instruments

• Two echo sounders for measuring temperature and depth
Camera monitoring system
• Video surveillance system with dome cameras in the following locations
• Main deck cockpit
• Upper deck cockpit
• Gun channel on the port and starboard sides
• Engine room in the bow and stern

Cathodic protection

• Zinc anodes
• Copper plates

Navigation lights

• The following navigation lights are installed on the vessel:
• Mast light
• Side light (port side)
• Side light (starboard side)
• Stern light
• Anchor light
• Non-mandatory lights
• Navigation shapes

FIRE PROTECTION EQUIPMENT AND SAFETY DEVICES

Structural fire protection

• Structural fire protection B15 in the engine room

Fire detection and fire alarm system

• Fire alarm panel
• Smoke detectors
• Call points
• Fire bells
• Bell with light beacon

Firefighting equipment

• Fixed fire extinguishing system
• Main fire pump connected to the main bilge pump
• Emergency diesel pump
• Portable fire extinguishers
• Four fire hydrants equipped with an 18 m fire hose reel with a jet nozzle on
• the deck, aft cockpit, guest lounge, and engine room
• Sprinkler system and gasoline vapor detection system in the garage
• International shore connection with shut-off valve and fire hydrant
• Fire control plan for the captain and yacht crew

Life-saving and evacuation equipment

• Four life rafts with a capacity of 10 people each
• Inflatable life jackets with light and whistle (20 adults)
• Inflatable life jackets with light and whistle (2 children)
• Two lifebuoys with light and smoke
• Two lifebuoys with line
• Four smoke caps
• One fire axe
• Four line-throwing devices
• Six rocket parachutes
• Emergency radio beacon for location determination
• Search and rescue repeater
• One fire blanket
• 20-liter gasoline storage canister
• One first aid kit

ENTERTAINMENT SYSTEM

• Satellite entertainment television system.
• Two domes on the hardtop, one with an antenna and the other as a mannequin

Sky Lounge

• 65-inch LED TV.
• Four ceiling speakers.
• Satellite receiver.
• Indoor access point.
• Multimedia hub.

Forward sun deck.

• Two wall-mounted speakers
• Outdoor access point

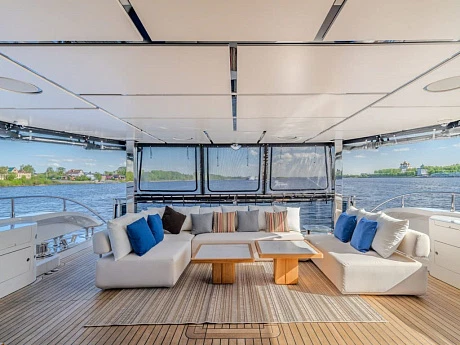

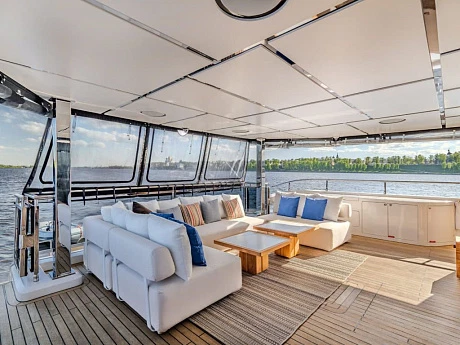

Aft sun deck

• Two ceiling speakers
• Two wall-mounted speakers

Aft cockpit

• Four ceiling speakers

Main saloon and dining area

• 55" LED TV
• Four ceiling speakers
• Satellite receiver
• Indoor access point
• Multimedia hub

Main lobby

• Indoor access point

Main galley

• Indoor access point
• Two ceiling speakers
Owner's cabin
• 75" LED TV
• Two ceiling speakers
• Satellite receiver
• Indoor access point
• Multimedia hub

Guest lobby

• Indoor access point

Double guest cabin (port and starboard)

• 43" LED TV
• Two ceiling speakers
• Satellite receiver
• Multimedia hub

Guest cabin with two single beds (on the left and right sides)

• 32" LED TV
• Two ceiling speakers
• Satellite receiver
• Multimedia center
VIP cabin
• 32" LED TV
• Two ceiling speakers
• Satellite receiver
• Multimedia center

Wheelhouse

• Two ceiling speakers
• Stereo system

Server rack equipment

• Music control amplifier
• 4 TB data storage device
• Two network switching devices
• Gateway router
• HDMI splitter
• HDMI extension cable
• Music zone amplifiers
• Uninterruptible power supply
• Network rack
• Apple iPad - 1 unit

Additional telecommunications, navigation, and safety equipment in accordance with CISR

• Spare magnetic compass
• Hand-bearing compass
• BNWAS
• Daylight signal lamp
• Equipment for measuring speed and distance to water
• Two wind transducers integrated with the instrument display at the main steering position
• NAVTEX
• Batteries and charger for GMDSS
• Equipment and breathing apparatus for two firefighters
• Two explosion-proof radios for firefighting
• Jason cradle

- Wastewater treatment system with a capacity of 3,200 liters per day

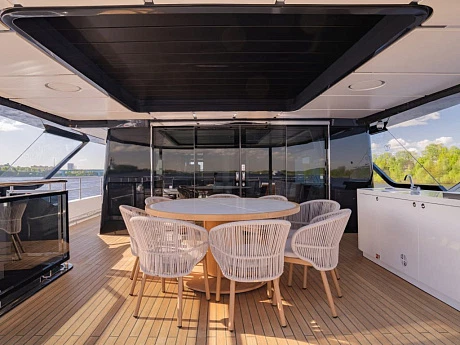

- Round dining table with dining chairs for 10 people on the upper deck at the stern of the vessel
- Portable shower on the swimming platform
- 1500 kg hydraulic swimming platform for maximum capacity of Williams 505 tender
- Twin cabins convertible into double pull-out beds
- Pullman bed in two guest cabins


- Teak deck furniture
- Williams 385 tender
